FIRE-ENGINE

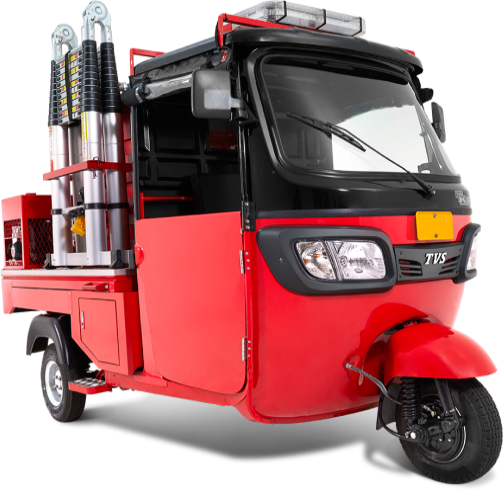

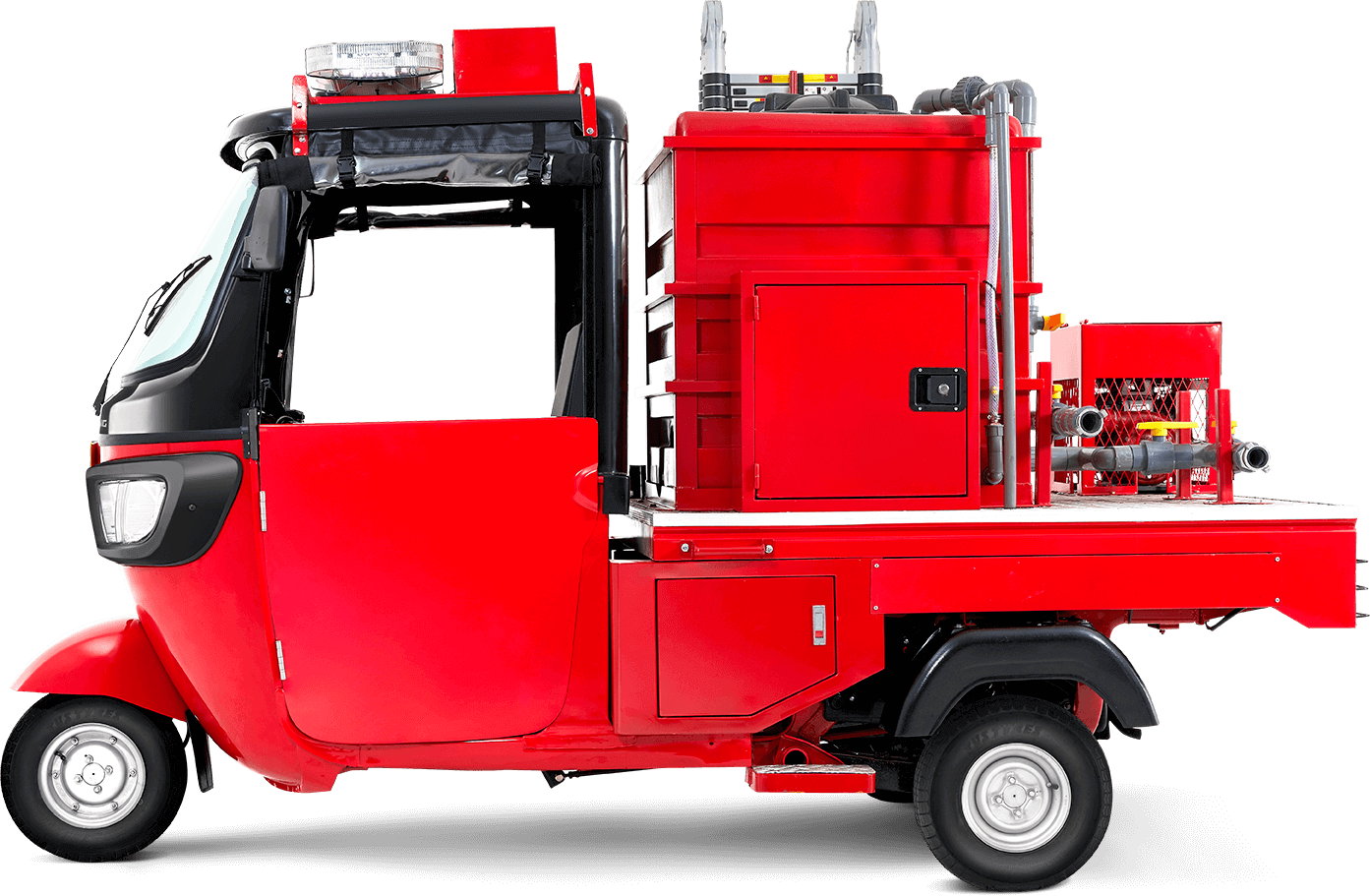

Quick Response is important to handle fire cases. TVS URC (First Response Unit) can be used as first response. The maneuverability in narrow roads is the advantage. It can bring 450 ltr of water and is equipped with Certified Fire Engine Pump WATERAX. Provide it in the residential or Factory area to increase the safety.



 MOST SUITABLE WHEN

  • Narrow street / lane
  • Dese residential area
  • Industrial factory / Warehouse



 Use Cases



  • First Response for fire fighting

SPESIFIKASI

TYPE                         1 Cylinder, 200 CC

MAX. OUTPUT     6.4kW @ 5250 RPM

MAX. TORQUE     14.94 NM @ 3250 RPM

IGNITION SYSTEM         DC – TCI

STARTER SYSTEM         Electric and Manual

BATTERY TYPE                MF – 12V 32Ah

FRONT SUSPENSION                Trailing Arm Type

REAR SUSPENSION                   Trailing Arm Type

FRONT BRAKE                             Hydraulic Automatic Drum

REAR BRAKE                                 Hydraulic Automatic Drum

FRONT TYRE SIZE                       4.00 – 8 6PR

REAR TYRE SIZE                          4.00 – 8 6PR

TANK CAPACITY           7.5 Liter

FUEL TYPE                          Gas

Length x WIDTH X HEIGHT               2930 mm x 1300 mm x 1694 mm

Body Dimension                                   1530 mm x 1320 mm x 475 mm

Wheelbase                                              1985 mm

Lowest Distance to Ground           158 mm

JBB / JBKB                                                645 Kg

Vehicle Empty Weight                      380 Kg

Carrying Capacity                              265 Kg
