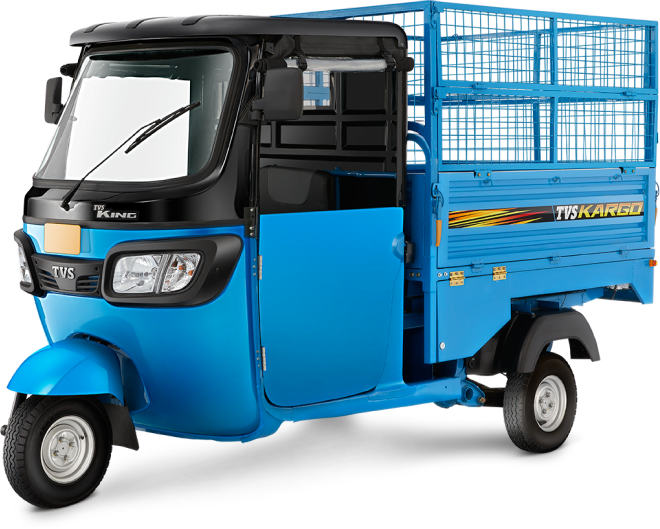

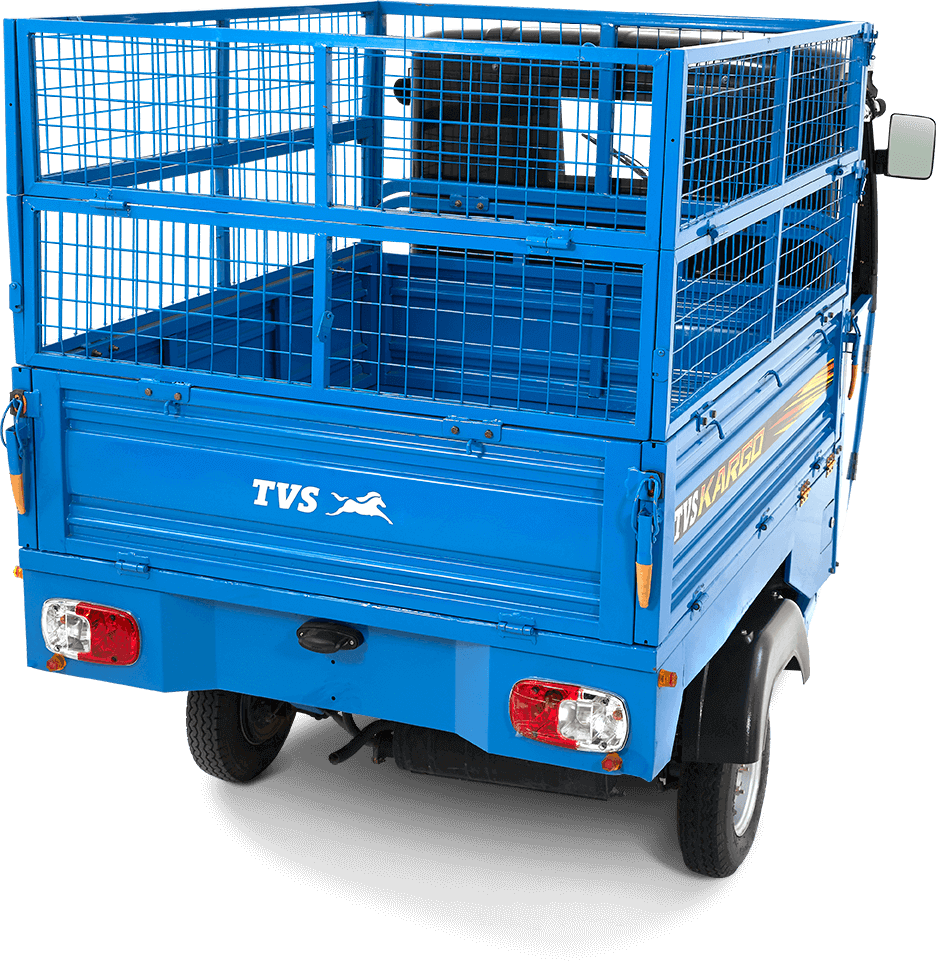

OPEN TRAY GRILLE

Carry your goods with TVS Kargo Ram. It can load up to 400 kg, and you can stack them up to 1,1 m. No need to worry about loading and unloading as the Ram can be folded making it easy to lift the goods.



 MOST SUITABLE WHEN



  • When the goods slightly taller / high volume
  • Needs side support.
  • The goods need open air



 Use Cases



  • Agriculture Goods, Live Stock
  • General Purpose Dry Waste Carry
  • FMCG & Groceries

TVS OPEN KARGO IN ACTION

SPESIFIKASI

TYPE                         1 Cylinder, 200 CC

MAX. OUTPUT     6.4kW @ 5250 RPM

MAX. TORQUE     14.94 NM @ 3250 RPM

IGNITION SYSTEM         DC – TCI

STARTER SYSTEM         Electric and Manual

BATTERY TYPE                MF – 12V 32Ah

FRONT SUSPENSION                Trailing Arm Type

REAR SUSPENSION                   Trailing Arm Type

FRONT BRAKE                             Hydraulic Automatic Drum

REAR BRAKE                                 Hydraulic Automatic Drum

FRONT TYRE SIZE                       4.00 – 8 6PR

REAR TYRE SIZE                          4.00 – 8 6PR

TANK CAPACITY           7.5 Liter

FUEL TYPE                          Gas

Length x WIDTH X HEIGHT               2930 mm x 1300 mm x 1694 mm

Body Dimension                                   1530 mm x 1320 mm x 475 mm

Wheelbase                                              1985 mm

Lowest Distance to Ground           158 mm

JBB / JBKB                                                645 Kg

Vehicle Empty Weight                      380 Kg

Carrying Capacity                              265 Kg
